| Place of Origin: | China |
|---|---|
| Brand Name: | CAMEL |
| Certification: | ISO9001, ISO14001, ISO45001, ISO50001 |
| Model Number: | PES500-A01 |
| Minimum Order Quantity: | 20FT |
| Packaging Details: | Packing box, carton, pallet |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 38 millions' units per year |
| Name: | LiFePo4 PES500 Portable Power Station To Explore The Outdoor | Item Name: | Portable Energy Storage System |
|---|---|---|---|
| Type: | LiFePo4 | Usage: | Camping, Outdoor Activity, Home Emergency |
| Function: | Power Storage, Power Supply | OEM: | Available，Acceptable |
| Inverter(Max Output Power): | 500W | Inverter(Voltage): | 120V-60Hz |
| Highlight: | camel batteries lifepo4 power supply,lifepo4 power supply 120V 60Hz,lifepo4 500w portable power station |
||

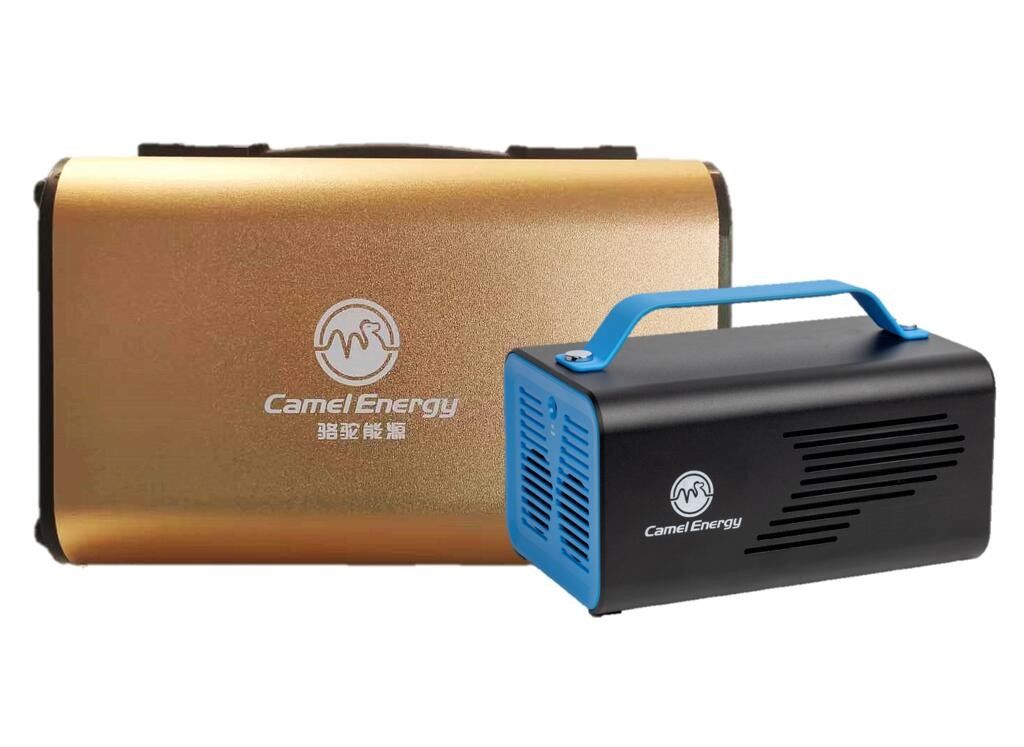

LiFePo4 PES500 Portable Power Station To Explore The Outdoor
If you’re planning for an outdoor exploration, you can consider Camel portable power station for your travel power supply and emergency needs. The Camel PES500 portable power station offers the USB-A, USB Type-C and AC outlet. You can charge your cell phone, mini coolers, coffee makers at your demanding. The power station is light enough for you to take anywhere without worries. It is convenient for all outdoor activities.
Product Features
1. Multiple output port, applicable to a variety of scenarios
2. Non inflammable material for battery shell, robust resistance to wear and shock
3. Intelligent temperature control and effectively heat dissipation
4. Over charging/discharging protection, effectively guarantee the safety of battery
5. Optimized design for cell to extend the lifetime of the battery
Product Model
| Total Capacity | 512Wh |
| Cell Capacity | 4000mAh |
| Total Battery Cells | 40pcs |
| Inverter (Simulated/Pure Sine Wave) | Pure Sine Wave |
| Inverter(Max Output Power) | 500W |
| Inverter(Voltage) | 120V-60Hz |
| Output Port(AC) | *2 |
| Output Port(USB-A) | 2*(5V/2.4A) |
| Output Port(USB-C) | 2*PD 60W&5V3A |
| Output Port(12V Car Port) | 10A Max |
| Input Port(DC 8mm) | 12-30V 3.5A; Charger:25.2V/3.5A |
Applications
It's specially designed for the outdoor explorations and activities.
About Camel
Founded in 1980, Camel Group Co., Ltd.(Stock No: SH601311) is specialized in the R&D, production and sales of lead-acid batteries, with the production of EV lithium-ion battery and used battery recycling as the supplement. Camel is the largest and leading car battery manufacturer in Asia.
Currently, Camel has four major brands, which are CAMEL, HUAZHONG, SWAN, DF. With over 400 types of products covering automotive starter battery, start-stop battery, lithium-ion battery, traction battery, etc. Camel batteries are widely used in cars, trucks, agricultural vehicles, golf carts, electric vehicles and other applications.
The core competitiveness of Camel Group stems from continuous independent innovation, clear development strategy and efficient execution, which are all based on having an enterprising and innovative management and technical team. To ensure the technological leadership in the industry, Camel has continuously increased R&D investment and introduced the world's leading automatic production lines, and advanced R&D and testing devices. The professional R&D institute under the company is recognized as state-level enterprise technology center. Camel also has academician expert workstation and state-level laboratory. As a high-tech enterprise supported by the state, Camel has entered the field of new energy vehicle prospectively, committed to green energy manufacturing and recycling, and opening a low-carbon life for mankind.
FAQ
1. Why is the battery voltage abnormal?
A: After charging, the voltage of each single cell should be around 2.1 V (may be affected by electrolyte density). If the voltage is low during primary usage, check if battery is fully charged or if electrolyte density is too high or too low.
If battery shows comparatively higher voltage during charging, along with numerous bubbles and voltage drops fast during discharge, this may indicate plates sulfation. Fully discharge the battery with low current and then charge the battery with low current (0.1C20), repeat the discharge and charge steps several times. The effect of this method may be affected by the sulfation degree.
2. What is the effect of abnormal electrolyte density and indicator color?
A: During battery charging and discharging processes, electrolyte density should vary from 1.070 to 1.290g/cm3. Density increases during charging and decreases when discharging.
a. If density is too high, it will cause plate sulfation and accelerate grid corrosion; while if density is too low, it will affect discharge capacity.
b. Under normal charging conditions, if the density does not increase significantly or even remain unchanged, there is a possibility of plate’s sulfation, which may need countermeasures to eliminate sulfation.
c. After the battery is charged, if the density decreases significantly during the resting period, it indicates the sever battery self-discharge, which may be caused by too much impurities in electrolyte. If electrolyte shows abnormal color or smell, or even shows turbidity, it indicates that the electrolyte is impure and impurities has got into the battery.
d. If electrolyte shows the color of metal ions, there is a possibility of contamination.
