Place of Origin: | China |
---|---|
Brand Name: | CAMEL |
Certification: | ISO9001, ISO14001, ISO45001, ISO50001 |
Model Number: | PES500-A01 |
Minimum Order Quantity: | 20FT |
Packaging Details: | Packing box, carton, pallet |
Delivery Time: | 30 Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 38 millions' units per year |
Name: | High Performance Portable Energy Power Station For Trip | Item: | Portable Energy Storage System |
---|---|---|---|
Type: | LiFePo4 | Applications: | Camping, Outdoor Activity, Emergency |
Function: | Power Storage, Power Supply | OEM: | Available,Acceptable |
Cell Capacity(mAh): | 4000 | Total Capacity (Wh): | 512 |
High Light: | 4000mAh outdoor power supply for camping,LiFePo4 outdoor power supply for camping,512Wh trip power supply |

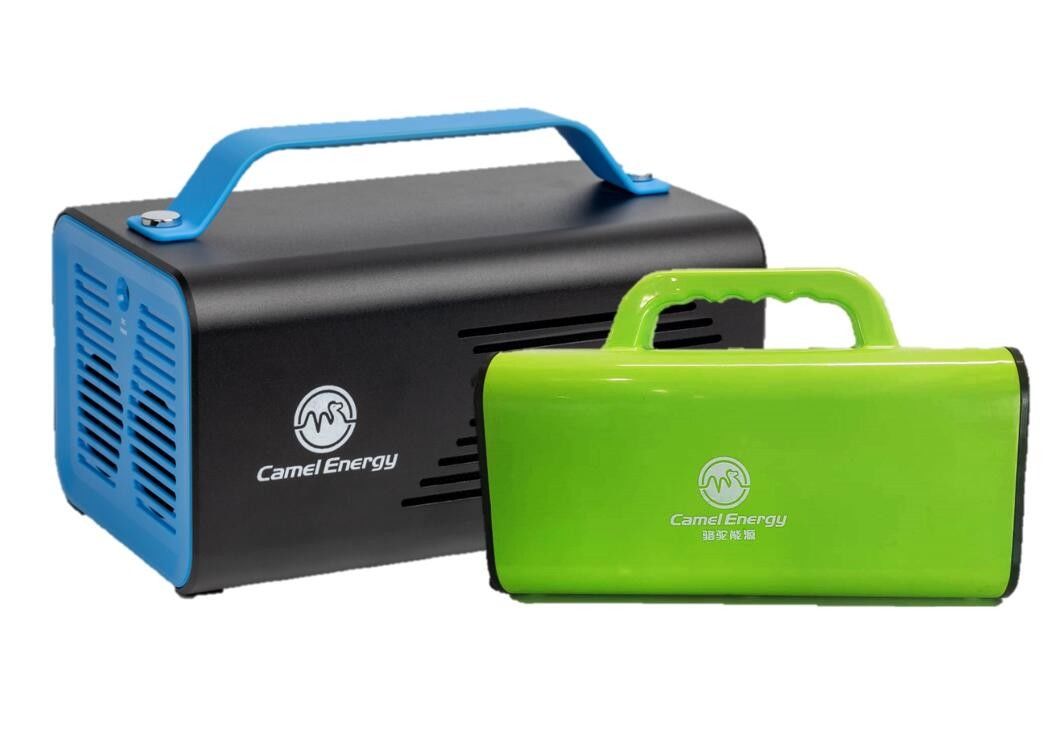

High Performance Portable Energy Power Station For Trip
The Camel portable energy power station is small and lightweight, while with big battery capacity. And it's compact enough, so it's favored by the outdoor explorer. It has multiple output ports which allows you to plug different electronics. The over-charging and over-dishcharging protection ensures the safety of the battery. You can trust this battery and take it to the place you want to explore.
Product Features
1. Multiple output port, applicable to a variety of scenarios
2. Non inflammable material for battery shell, robust resistance to wear and shock
3. Intelligent temperature control and effectively heat dissipation
4. Over charging/discharging protection, effectively guarantee the safety of battery
5. Optimized design for cell to extend the lifetime of the battery
Product Model
Total Capacity | 512Wh |
Cell Capacity | 4000mAh |
Total Battery Cells | 40pcs |
Inverter (Simulated/Pure Sine Wave) | Pure Sine Wave |
Inverter(Max Output Power) | 500W |
Inverter(Voltage) | 120V-60Hz |
Output Port(AC) | *2 |
Output Port(USB-A) | 2*(5V/2.4A) |
Output Port(USB-C) | 2*PD 60W&5V3A |
Output Port(12V Car Port) | 10A Max |
Input Port(DC 8mm) | 12-30V 3.5A; Charger:25.2V/3.5A |
Applications
It's suitable for the people who travels a lot and camps outside.
About Camel
Founded in 1980, Camel Group Co., Ltd.(Stock No: SH601311) is specialized in the R&D, production and sales of lead-acid batteries, with the production of EV lithium-ion battery and used battery recycling as the supplement. Camel is the largest and leading car battery manufacturer in Asia.
Currently, Camel has four major brands, which are CAMEL, HUAZHONG, SWAN, DF. With over 400 types of products covering automotive starter battery, start-stop battery, lithium-ion battery, traction battery, etc. Camel batteries are widely used in cars, trucks, agricultural vehicles, golf carts, electric vehicles and other applications.
The core competitiveness of Camel Group stems from continuous independent innovation, clear development strategy and efficient execution, which are all based on having an enterprising and innovative management and technical team. To ensure the technological leadership in the industry, Camel has continuously increased R&D investment and introduced the world's leading automatic production lines, and advanced R&D and testing devices. The professional R&D institute under the company is recognized as state-level enterprise technology center. Camel also has academician expert workstation and state-level laboratory. As a high-tech enterprise supported by the state, Camel has entered the field of new energy vehicle prospectively, committed to green energy manufacturing and recycling, and opening a low-carbon life for mankind.
FAQ
1. Why is the battery voltage abnormal?
A: After charging, the voltage of each single cell should be around 2.1 V (may be affected by electrolyte density). If the voltage is low during primary usage, check if battery is fully charged or if electrolyte density is too high or too low.
If battery shows comparatively higher voltage during charging, along with numerous bubbles and voltage drops fast during discharge, this may indicate plates sulfation. Fully discharge the battery with low current and then charge the battery with low current (0.1C20), repeat the discharge and charge steps several times. The effect of this method may be affected by the sulfation degree.
2. What is the effect of abnormal electrolyte density and indicator color?
A: During battery charging and discharging processes, electrolyte density should vary from 1.070 to 1.290g/cm3. Density increases during charging and decreases when discharging.
a. If density is too high, it will cause plate sulfation and accelerate grid corrosion; while if density is too low, it will affect discharge capacity.
b. Under normal charging conditions, if the density does not increase significantly or even remain unchanged, there is a possibility of plate’s sulfation, which may need countermeasures to eliminate sulfation.
c. After the battery is charged, if the density decreases significantly during the resting period, it indicates the sever battery self-discharge, which may be caused by too much impurities in electrolyte. If electrolyte shows abnormal color or smell, or even shows turbidity, it indicates that the electrolyte is impure and impurities has got into the battery.
d. If electrolyte shows the color of metal ions, there is a possibility of contamination.
