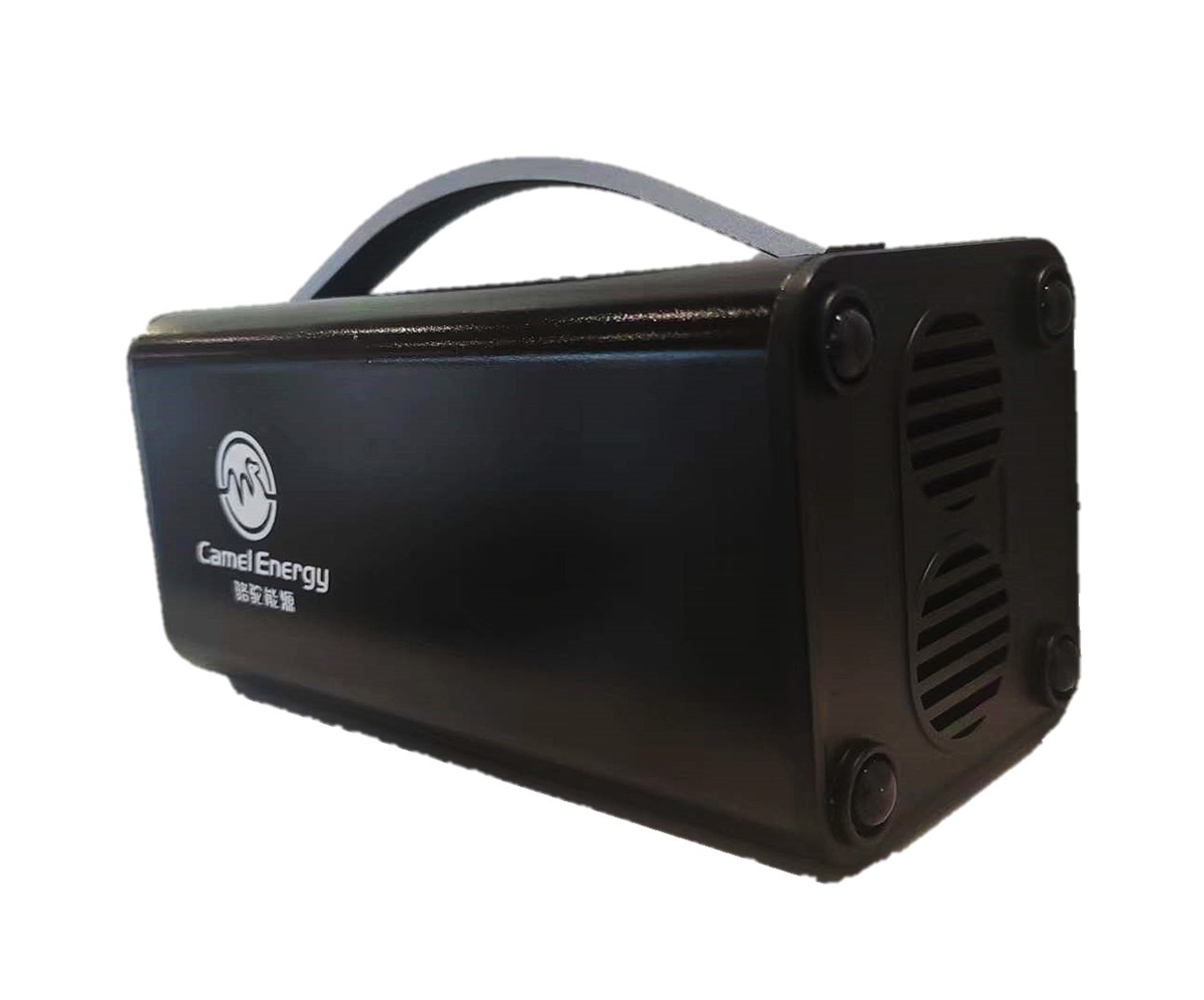

30V 10A Lithium Ion Portable Power Station For 1024Wh Outdoor Activity Portable Power Supply

Basic Information
Place of Origin: China
Brand Name: CAMEL
Certification: ISO9001, ISO14001, ISO45001, ISO50001
Model Number: PES1000-A01
Minimum Order Quantity: 20FT
Packaging Details: Packing box, carton, pallet
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 38 millions' units per year
Detail Information
Name: Lithium-ion Portable Power Station For Outdoor Activity Item Name: Portable Energy Storage System
Battery Type: LiFePo4 Applications: Camping, Outdoor Activity
Function: Power Storage, Power Supply OEM: Available,Acceptable
Output Port(AC): *4 Input Port(DC 8mm): 12-30V 10A
High Light:

30V lithium ion portable power station

,

10A lithium ion portable power station

,

1024Wh outdoor portable power supply


Product Description

Lithium-ion Portable Power Station For Outdoor Activity

The lithium-ion portable power storage product is our new portable energy storage designed for outdoor enthusiasts, especially for those who travel a lot and want to live a fulfilling life on the go. This lithium-ion battery pack is light and compact enough to fit in your pocket. Despite its small size, this portable power storage can provide enough power for your outdoor activity.



Product Features

1. Max output power is 1500W, available for high-power electrical appliances
2. Noninflammable material for battery shell, robust resistance to wear and shock
3. Intelligent temperature control and effectively heat dissipation
4. Over charging/discharging protection, effectively guarantee the safety of the battery
5. Optimized design for the cell to extend the lifetime of the battery




Product Model


Total Capacity 1024Wh
Cell Capacity 4000mAh
Total Battery Cells 80pcs
Inverter (Simulated/Pure Sine Wave) Pure sine wave
Inverter(Max Output Power) 1500W
Inverter(Voltage) 120V 60Hz
Output Port(AC) *4
Output Port(USB-A) 3*(5V/2.4A)
Output Port(USB-C) 3*PD 60W
Output Port (12V Car Port) 9V-12.6V 10A
Input Port(DC 8mm) 12-30V 10A
Input Port(Solar Charge) 13-30V/30A 400W






Applications


Live-streaming, Outdoor exploration, Photography interviews, Mobile office, Outdoor camping, RV travel, Engineering construction, Tool power supply, Medical treatment, Fire rescue, etc.



30V 10A Lithium Ion Portable Power Station For 1024Wh Outdoor Activity Portable Power Supply 0




About Camel


Founded in 1980, Camel Group Co., Ltd.(Stock No: SH601311) is specialized in the R&D, production and sales of lead-acid batteries, with the production of EV lithium-ion battery and used battery recycling as the supplement. Camel is the largest and leading car battery manufacturer in Asia.
Currently, Camel has four major brands, which are CAMEL, HUAZHONG, SWAN, DF. With over 400 types of products covering automotive starter battery, start-stop battery, lithium-ion battery, traction battery, etc. Camel batteries are widely used in cars, trucks, agricultural vehicles, golf carts, electric vehicles and other applications.
The core competitiveness of Camel Group stems from continuous independent innovation, clear development strategy and efficient execution, which are all based on having an enterprising and innovative management and technical team. To ensure the technological leadership in the industry, Camel has continuously increased R&D investment and introduced the world's leading automatic production lines, and advanced R&D and testing devices. The professional R&D institute under the company is recognized as state-level enterprise technology center. Camel also has academician expert workstation and state-level laboratory. As a high-tech enterprise supported by the state, Camel has entered the field of new energy vehicle prospectively, committed to green energy manufacturing and recycling, and opening a low-carbon life for mankind.





30V 10A Lithium Ion Portable Power Station For 1024Wh Outdoor Activity Portable Power Supply 1

30V 10A Lithium Ion Portable Power Station For 1024Wh Outdoor Activity Portable Power Supply 2




FAQ


1. Why is the battery voltage abnormal?


A: After charging, the voltage of each single cell should be around 2.1 V (may be affected by electrolyte density). If the voltage is low during primary usage, check if battery is fully charged or if electrolyte density is too high or too low.
If battery shows comparatively higher voltage during charging, along with numerous bubbles and voltage drops fast during discharge, this may indicate plates sulfation. Fully discharge the battery with low current and then charge the battery with low current (0.1C20), repeat the discharge and charge steps several times. The effect of this method may be affected by the sulfation degree.


2. What is the effect of abnormal electrolyte density and indicator color?

A: During battery charging and discharging processes, electrolyte density should vary from 1.070 to 1.290g/cm3. Density increases during charging and decreases when discharging.
a. If density is too high, it will cause plate sulfation and accelerate grid corrosion; while if density is too low, it will affect discharge capacity.
b. Under normal charging conditions, if the density does not increase significantly or even remain unchanged, there is a possibility of plate’s sulfation, which may need countermeasures to eliminate sulfation.
c. After the battery is charged, if the density decreases significantly during the resting period, it indicates the sever battery self-discharge, which may be caused by too much impurities in electrolyte. If electrolyte shows abnormal color or smell, or even shows turbidity, it indicates that the electrolyte is impure and impurities has got into the battery.
d. If electrolyte shows the color of metal ions, there is a possibility of contamination.
