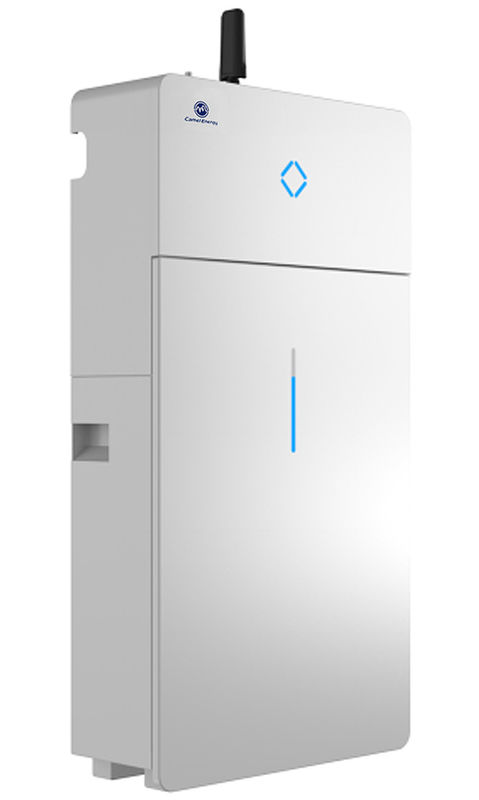

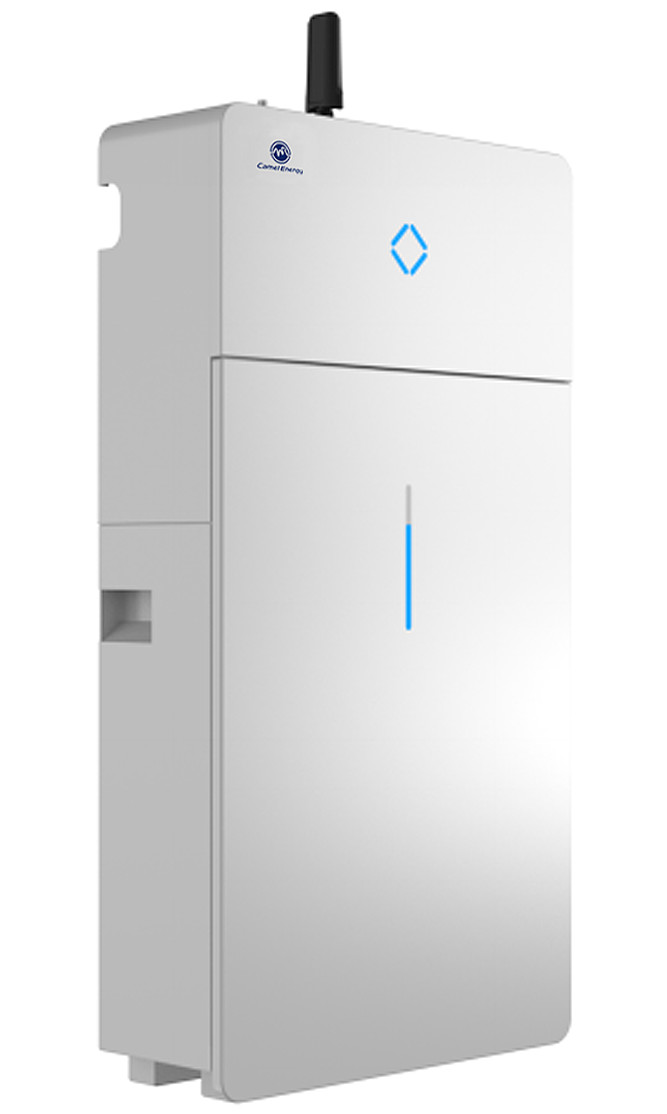

Camel 8.2KWH Household Building Lifepo4 Battery Packs Solar Energy Power Supply With Inverter

Basic Information
Place of Origin: China
Brand Name: CAMEL
Certification: ISO9001, ISO14001, ISO45001, ISO50001
Model Number: StorageB 8.2
Minimum Order Quantity: 20FT
Packaging Details: Packing box, carton, pallet
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 38 millions' units per year
Detail Information
Product Name: Camel Brand Household 8.2KWH LiFePo4 Battery Pack With Inverter All-in-one Energy Stroage System Item Name: Residential Energy Storage System
Material: LiFePo4 Battery, Inverter, PV Panel Application: Home
Functions: Solar Energy Storage, Power Supply OEM: Available,Acceptable
Battery Type: LiFePO4 Battery Capacity: 8.2kWh
Max. PV Input Power: 9000W Max. PV Input Voltage: 580Vdc
High Light:

Camel building lifepo4 battery packs

,

8.2KWH Home building lifepo4 battery packs

,

Camel 9000W solar energy power supply


Product Description

Camel Brand Household 8.2KWH LiFePo4 Battery Pack With Inverter All-in-one Energy Stroage System



The all-in-one product is integrated with battery pack, inverter and BMS system. The all-in-one design makes everything much better. Now you can generate, store and manage your own clean energy in a single system. The product is safe, powerful and reliable. You can enjoy a clean energy back-up for your family. And you can monitor your system with remote APP at anytime and anywhere.




Product Features

Power Export Control

Camel Storage enables to adjust system export power. If energy export is prohibited, system output will be adjusted according to load status and maximum allowable grid export.

Off-grid Compatible

Camel Storage can be installed in a completely off-grid mode.

Flexible Investment

Stackable module design, easily extend 8.2kWh per module, available from 8.2 to 49.2kWh

Higher battery efficiency

Easy Installation

Easy installation.One-stop for all

Intelligent

User-friendly interface, Intelligent monitoring, Smart power gridsBetter PV utilization

Cloud Control

Cloud compatible controlManage your energy anytime, anywhere




Product Model

Items StorageB 8.2
Battery type LiFePO4
Battery capacity 8.2kWh
Useable capacity 7.9kWh
Scalable capacity range 8.2~49.2kWh (95%DoD)
Voltage range 240-288V
Operating temperature range -10°C~50°C ( Temperature is less than 0°C or more than 40°C, battery performance will decrease )
Cycles 10000 (Under certain test conditions )
Dimensions (W×H×D) 580×820×232 mm
Weight 88kg

Items Storage 3600 Storage 5000
PV Parameters
Max. PV input power 9000W
Max. PV input voltage 580Vdc
MPPT voltage range 100Vdc~ 550Vdc
Max input current 15Adc×2

On-grid Parameters
Rated output power 3600W 5000W 6000W
Rated input power 7200W 10000W 12000W
Rated output voltage 220/230/240Vac
Grid frequency range 50/60Hz
Rated output current 15.7A 21.7A 26.1A
Rated input current 31.4A 43.4A 52.2A
Power factor >0.99
Max efficiency 97.70%
Europe efficiency 97.10%
THDi <3% (rated power)

Back up Parameters
Rated output voltage 220/230/240Vac
Rated output frequency 50/60Hz
Rated output power 3600W 5000W 6000W
Max output power 4680W 1min 6500W 1min 7800W 1min
Transfer time <10ms
Voltage harmonic <2% (rated power)

Charge-Discharge Parameters
Rated charging voltage 85Vdc~450Vdc
Max charging power 3600W 5000W 6000W
Max charging current 32A (settable)
Max power 5400W 7500W

7800W




Applications



The residential energy storage system is widely applied in the home to save the energy, back-up energy for the emergency etc.



Camel 8.2KWH Household  Building Lifepo4 Battery Packs Solar Energy Power Supply With Inverter 0






About Camel



Founded in 1980, Camel Group Co., Ltd.(Stock No: SH601311) is specialized in the R&D, production and sales of lead-acid batteries, with the production of EV lithium-ion battery and used battery recycling as the supplement. Camel is the largest and leading car battery manufacturer in Asia.
Currently, Camel has four major brands, which are CAMEL, HUAZHONG, SWAN, DF. With over 400 types of products covering automotive starter battery, start-stop battery, lithium-ion battery, traction battery, etc. Camel batteries are widely used in cars, trucks, agricultural vehicles, golf carts, electric vehicles and other applications.
The core competitiveness of Camel Group stems from continuous independent innovation, clear development strategy and efficient execution, which are all based on having an enterprising and innovative management and technical team. To ensure the technological leadership in the industry, Camel has continuously increased R&D investment and introduced the world's leading automatic production lines, and advanced R&D and testing devices. The professional R&D institute under the company is recognized as state-level enterprise technology center. Camel also has academician expert workstation and state-level laboratory. As a high-tech enterprise supported by the state, Camel has entered the field of new energy vehicle prospectively, committed to green energy manufacturing and recycling, and opening a low-carbon life for mankind.





Camel 8.2KWH Household  Building Lifepo4 Battery Packs Solar Energy Power Supply With Inverter 1

Camel 8.2KWH Household  Building Lifepo4 Battery Packs Solar Energy Power Supply With Inverter 2




FAQ



1. Why is there a possible battery explosion? And how do we prevent it?


A: A lot of hydrogen and oxygen will be produced during the charging process of battery. When the concentration of the mixed gas reaches 4% in the air, if sparks generated due to loose wire connection or open fire from outside interferes, there is a possibility that explosion may occur, which will damage the battery or even injure people and things. Preventions are as below:

a. Control the power charged, avoid overcharge, to reduce the amount of gas degassed.

b. No open fire near the batteries during charging process and keep good ventilation.

c. During charging, the connection should be firm to avoid sparks due to loose connection.

d. Adopts constant current and limited voltage charging method, which generates less gas evolution.

e. Prevent sparks or even fire and explosion due to short circuit.

f. Keep the degassing hole unobstructed for the maintenance-free sealed batteries, otherwise, the increased internal pressure may accumulate too high to cause bulge or even explosion.





2. Why the capacity is decreased?



A: If battery shows insufficient capacity during usage, or capacity cannot meet rated capacity value, we should firstly consider the possibility of insufficient charge or insufficient recharge after usage. Check if the electrolyte density is too low, of if the electrolyte level increases after recharge.

a. Sulfation (over-charge, repeated charge, hydrotherapy for desulfurization)

b. Pollution of electrolyte (after multiple flushing with distilled water, change the electrolyte)

c. Whether batteries show partial short circuit.

d. Phenomena like grid corrosion, plate breakage, active mass shedding etc. at the end of service life.
