| Place of Origin: | China |
|---|---|
| Brand Name: | CAMEL |
| Certification: | ISO9001, ISO14001, ISO45001, ISO50001 |
| Model Number: | HESB1 |
| Minimum Order Quantity: | 20FT |
| Packaging Details: | Packing box, carton, pallet |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 38 millions' units per year |
| Product Name: | Second Generation Lithium-ion Battery Pack For Household Power Supply 5KWH-40KWH | Item Name: | Residential Energy Storage System |
|---|---|---|---|
| Material: | LiFePo4 Battery, Inverter, PV Panel | Applied Area: | House |
| Functions: | Solar Energy Storage, Power Supply | OEM: | Available，Acceptable |
| Battery Type: | Lithium | Battery Capacity: | 10kWh |
| Voltage Range: | 102V | Weight: | Kg |

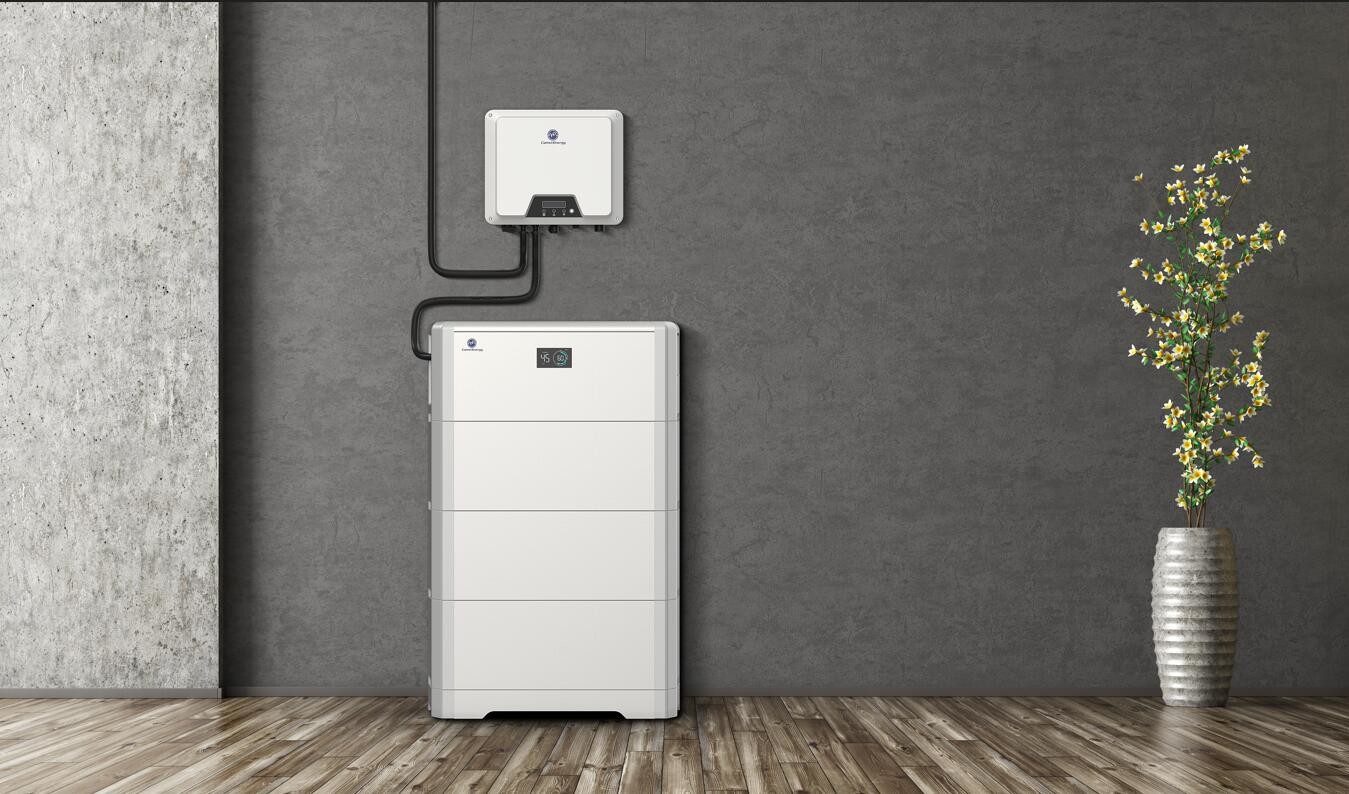

10KWH 102V Residential Energy Storage System Stack Style Camel HESB1 Type
The 10KWH 102V Residential Energy Storage System Stack Style Camel HESB1 Type is an advanced energy storage solution specifically designed for residential use. With a capacity of 10KWH and an output voltage of 102V, this energy storage system is capable of providing sustained power to a wide range of appliances and devices. Utilizing stack style technology, the HESB1 Type is able to store energy in a safe and efficient manner, making it an ideal choice for homeowners looking for an affordable and reliable energy storage solution. Whether you're looking to reduce your energy bills or increase your self-sufficiency, the 10KWH 102V Residential Energy Storage System Stack Style Camel HESB1 Type is an investment that can pay dividends for years to come
Product Features
Power Export Control
Camel Storage enables to adjust system export power. If energy export is prohibited, system output will be adjusted according to load status and maximum allowable grid export.
Off-grid Compatible
Camel Storage can be installed in a completely off-grid mode.
Flexible Investment
Stackable module design, easily extend 8.2kWh per module, available from 8.2 to 49.2kWh
Higher battery efficiency
Easy Installation
Easy installation.One-stop for all
Intelligent
User-friendly interface, Intelligent monitoring, Smart power grids, Better PV utilization
Cloud Control
Cloud compatible control, Manage your energy anytime, anywhere
Product Model
| Model | CamelESS-10 | CamelESS-15 | CamelESS-20 |
| Number of Battery | 2 | 3 | 4 |
| Rated Power(kWh) | 10.24 | 15.36 | 20.48 |
| Rated Voltage(V) | 102.4 | 153.6 | 204.8 |
| Charge/Discharge cut off Voltage(V) | 89.6~115.2 | 134.4~172.8 | 179.2~230.4 |
| Rated Charge/Discharge Current(A) | 25/25 | ||
| Max. Charge/Discharge Current(A) | 50/50 | ||
| Communication Interface | CAN 2.0 / RS485 | ||
| Protection Features |
Charging overvoltage protection, discharge under –voltage protection, over current protection, over temperature protection , short circuit protection, etc. |
||
| Protection Level | IP65 | ||
| Altitude | <2000m | ||
| Weigt(kg) | 105 | 150 | 195 |
| Size(W*H*D,mm) | 680*860*245 | 680*1120*245 | 680*1380*245 |
| Opertating Temperature Range | Charge:0~50℃；Discharge:-10℃~50℃ | ||
| Storage Temperature Range | -20℃~50℃ | ||
| Humidity Range | 10%~95%,non condensation | ||
| Safety | IEC62619/UL1973 | ||
| Transport | UN38.3 | ||
Applications
The residential energy storage system is widely applied in the home to save the energy, back-up energy for the emergency etc.
About Camel
Founded in 1980, Camel Group Co., Ltd.(Stock No: SH601311) is specialized in the R&D, production and sales of lead-acid batteries, with the production of EV lithium-ion battery and used battery recycling as the supplement. Camel is the largest and leading car battery manufacturer in Asia.
Currently, Camel has four major brands, which are CAMEL, HUAZHONG, SWAN, DF. With over 400 types of products covering automotive starter battery, start-stop battery, lithium-ion battery, traction battery, etc. Camel batteries are widely used in cars, trucks, agricultural vehicles, golf carts, electric vehicles and other applications.
The core competitiveness of Camel Group stems from continuous independent innovation, clear development strategy and efficient execution, which are all based on having an enterprising and innovative management and technical team. To ensure the technological leadership in the industry, Camel has continuously increased R&D investment and introduced the world's leading automatic production lines, and advanced R&D and testing devices. The professional R&D institute under the company is recognized as state-level enterprise technology center. Camel also has academician expert workstation and state-level laboratory. As a high-tech enterprise supported by the state, Camel has entered the field of new energy vehicle prospectively, committed to green energy manufacturing and recycling, and opening a low-carbon life for mankind.
FAQ
1. Why is there a possible battery explosion? And how do we prevent it?
A: A lot of hydrogen and oxygen will be produced during the charging process of battery. When the concentration of the mixed gas reaches 4% in the air, if sparks generated due to loose wire connection or open fire from outside interferes, there is a possibility that explosion may occur, which will damage the battery or even injure people and things. Preventions are as below:
a. Control the power charged, avoid overcharge, to reduce the amount of gas degassed.
b. No open fire near the batteries during charging process and keep good ventilation.
c. During charging, the connection should be firm to avoid sparks due to loose connection.
d. Adopts constant current and limited voltage charging method, which generates less gas evolution.
e. Prevent sparks or even fire and explosion due to short circuit.
f. Keep the degassing hole unobstructed for the maintenance-free sealed batteries, otherwise, the increased internal pressure may accumulate too high to cause bulge or even explosion.
2. Why the capacity is decreased?
A: If battery shows insufficient capacity during usage, or capacity cannot meet rated capacity value, we should firstly consider the possibility of insufficient charge or insufficient recharge after usage. Check if the electrolyte density is too low, of if the electrolyte level increases after recharge.
a. Sulfation (over-charge, repeated charge, hydrotherapy for desulfurization)
b. Pollution of electrolyte (after multiple flushing with distilled water, change the electrolyte)
c. Whether batteries show partial short circuit.
d. Phenomena like grid corrosion, plate breakage, active mass shedding etc. at the end of service life.
